ASTM A27-70-36 Cast Steel Kevel Chocks Ship Mooring Equipment
Detail produk:
| Tempat asal: | Cina |
| Nama merek: | Zhongyuan |
| Sertifikasi: | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc. |
| Nomor model: | Standar dan disesuaikan |
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 1 |
|---|---|
| Harga: | As per quotation |
| Kemasan rincian: | Pallet atau disesuaikan |
| Waktu pengiriman: | Sesuai penawaran |
| Syarat-syarat pembayaran: | TT, L/C, dll. |
| Menyediakan kemampuan: | Memenuhi kebutuhan klien |
|
Informasi Detail |
|||
| Tipe model: | Kevel Chock | Dimensi (inci): | Kevel Chock (24" 30" 36" 42" 48"); Kevel Besar (36", 42", 48" |
|---|---|---|---|
| Kelas bahan: | ASTM A27-70-36 Cast Steel, Casting Stainless Steel | Kontrol kualitas: | Perlakuan Panas, Pemeriksaan Radiografi (RT), Pengujian Magnetik (MT), Uji Beban Tarik |
| Pengobatan permukaan: | sandblasting ke S2.5, satu lapisan primer toko epoksi, Dipoles, Galvanis, perawatan permukaan yang d | sertifikat: | CCS/BV/LR/ABS/DNV-GL |
| Menyoroti: | 36 Tulang Kevel Baja Cair,Peralatan Pengantar Kapal Kevel Chocks,Perlengkapan berlabuh Kevel Chocks |
||
Deskripsi Produk
ASTM A27-70-36 Cast Steel Kevel Chocks Ship Mooring Equipment
Keterangan:
Kami memproduksi semua jenis Kevel.Termasuk Kevel Chock, Kevel Berat, Kevel Besar, Kevel X-Large, Kevel Chock Melalui dek (Melalui Deck Kevel), Kevel Kecil, Kevel Terbesar, Melalui Deck Raised Kevels.
Spesifikasi Teknis Utama:
1. Tipe Model: Kevel Chock
2. Dimensi (inci): Kevel Chocks (24" 30" 36" 42" 48"); Kevel Besar (36", 42", 48"); X-Large Kevels (60"), dll.
3. Bahan Grade: ASTM A27-70-36 Cast Steel, Casting Stainless Steel
4. Kontrol Kualitas: Perlakuan Panas, Pemeriksaan Radiografi (RT), Pengujian Magnetik (MT), Uji Beban Tarik
5. Perawatan permukaan: sandblasting ke S2.5, satu lapisan primer toko epoksi, Dipoles, Galvanis, perawatan permukaan yang disesuaikan tersedia.
6. Sertifikat: CCS/BV/LR/ABS/DNV-GL
Parameter Teknis Utama:
| Keterangan | Ukuran | Dimensi, Inci (MM) |
Bobot LBS (KGS) |
||||||||||
| A | B | C | D | E | F | G | H | Saya | J | K | |||
| Kevel Chock | 24” |
24” (610) |
3” (76) |
7-1/2” (190) |
4” (101) |
5-5/8” (143) |
5-1/8” (130) |
2-1/4” (57) |
3-1/4” (83) |
9” (229) |
10-1/2” (267) |
1/2” (13) |
50 (23) |
| 30” |
30” (762) |
3-1/4” (83) |
9-1/2” (241) |
4” (101) |
7” (178) |
5-5/8” (143) |
2-3/8” (60) |
6-7/8” (175) |
14” (356) |
20-1/4” (514) |
1/2” (12.7) |
75 (34) |
|
| 36” |
36” (914) |
4” (101) |
11” (279) |
5” (127) |
8” (203) |
6-3/4” (171) |
3-1/4” (83) |
8-1/4” (210) |
17” (432) |
23-1/2” (572) |
1/2” (12.7) |
98 (44) |
|
| 42” |
42” (1066) |
4-3/4” (121) |
12-1/2” (318) |
6” (152) |
9” (229) |
7-7/8” (200) |
4-1/8” (104) |
9-5/8” (245) |
20” (508) |
26-3/4” (679) |
1/2” (12.7) |
168 (76) |
|
| 48” |
48” (1219) |
5-1/2” (140) |
14” (356) |
7” (178) |
10” (254) |
9” (229) |
5” (127) |
11” (279) |
23” (584) |
30” (762) |
2/3” (17) |
220 (100) |
|

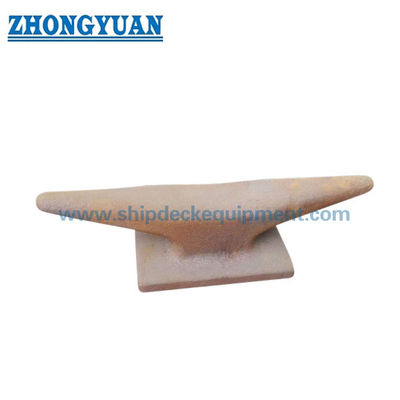

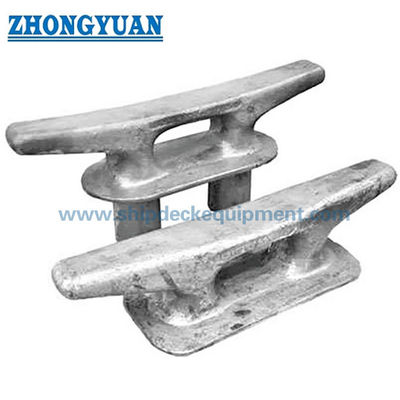

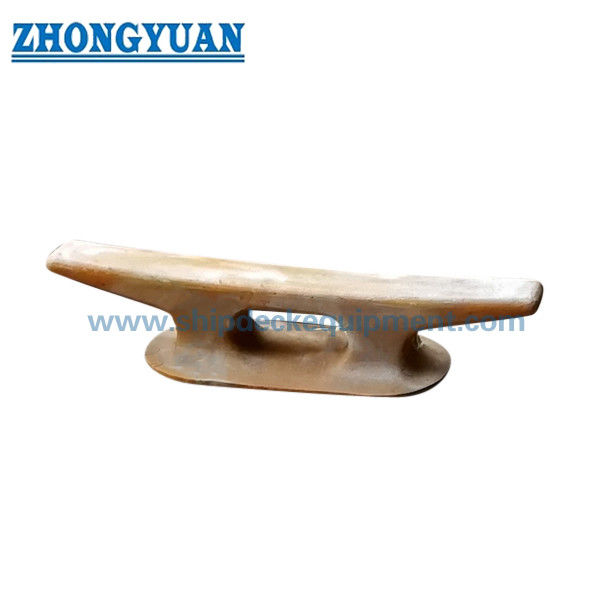

Gambar ASTM A27-70-36 Cast Steel Kevel Chocks Ship Mooring Equipment
